Molex 743201000

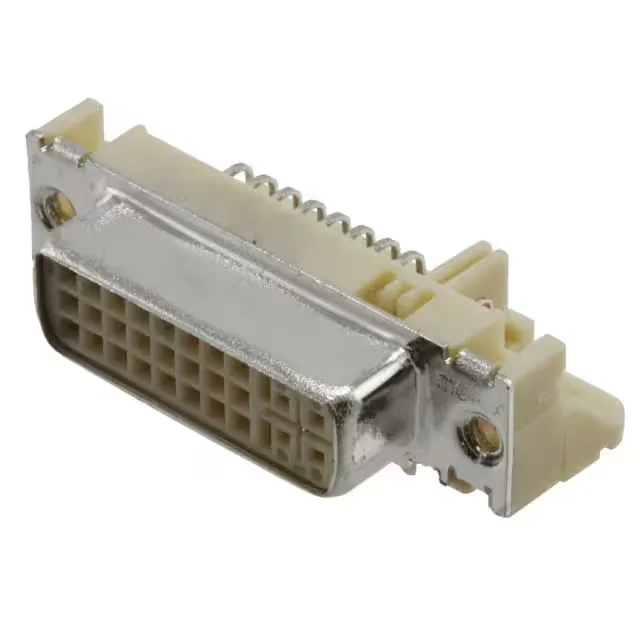

Molex 743201000 DVI-I Dual Link Receptacle, 29 Pos, R/A

MPN 743201000
Active

Molex MicroCross 74320 DVI-I Dual Link receptacle, 29 contacts, right-angle PCB mount, panel mount with flange, shielded steel shell, gold contact finish, 3A per contact, 40VAC, solder termination.

$6.16 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMicroCross 74320
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

743201000 key specifications
ParameterValue
SeriesMicroCross 74320
MountingPanel Mount, Through Hole, Right Angle
Connector typeDVI-I, Dual Link
Voltage - rated40VAC
Current rating3A per Contact
Positions29
Mounting featureFlange, Horizontal
Operating temperature-20°C ~ 85°C
Insulation colorWhite
Shell (Shielding material)Steel
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

743201000 additional specifications
ParameterValue
PackageTray
FeaturesBoard Guide
ShieldingShielded
TerminationSolder
Mating cycles100
Contact finishGold
Number of ports1

Product details

DVI-I Dual Link Receptacle — 29 Contacts, Right-Angle Panel Mount

The Molex 743201000 is a DVI-I Dual Link receptacle from the MicroCross 74320 series, carrying 29 contacts in a single shielded shell. This is the full-size DVI-I configuration — it handles both digital (TMDS) and analog (VGA) video signals through the same connector, which means a DVI-I cable or a passive adapter can drive either signal type.

29 Contacts — the DVI-I Dual Link Pinout

The 29-contact count is the DVI-I Dual Link standard: 24 digital signal contacts (three TMDS channels + clock, each with a dedicated return), 4 analog signal contacts (RGB + horizontal/vertical sync), and a single wide ground blade. The dual-link designation means the connector supports two TMDS links, enabling resolutions up to 2560x1600 at 60 Hz — the single-link variant (DVI-I Single Link) uses only 24 contacts and tops out at 1920x1200. The pinout follows the DDWG specification, so the Molex 743201000 mates with any standard DVI-I Dual Link plug.

Shielded Steel Shell and Right-Angle PCB Mount

The steel shell and full shielding are not optional for a DVI connector — the TMDS differential pairs run at multi-gigabit data rates, and the shell provides the continuous ground plane that keeps common-mode noise from radiating.

3A per Contact — Enough for DDC and Hot-Plug

Rated 3A per contact at 40VAC, the current capacity covers the DDC (+5V at 1A max) and hot-plug detect signals without margin concerns.
