Molex 743201004

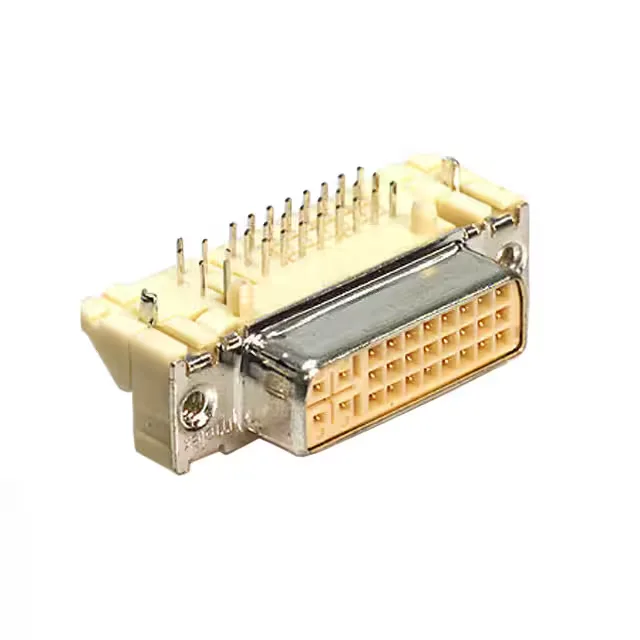

Molex MicroCross 743201004 DVI-I Dual Link Receptacle

MPN 743201004
Active

Molex MicroCross 74320 DVI-I Dual Link receptacle, 29 contacts, right-angle PCB mount, shielded, gold-plated contacts, 3A per contact, 40VAC.

$5.9 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMicroCross 74320
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

743201004 key specifications
ParameterValue
SeriesMicroCross 74320
MountingPanel Mount, Through Hole, Right Angle
Connector typeDVI-I, Dual Link
Voltage - rated40VAC
Current rating3A per Contact
Positions29
Mounting featureFlange, Horizontal
Operating temperature-20°C ~ 85°C
Insulation colorWhite
Shell (Shielding material)Steel
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

743201004 additional specifications
ParameterValue
PackageTray
FeaturesBoard Guide
ShieldingShielded
TerminationSolder
Mating cycles100
Contact finishGold
Number of ports1

Product details

DVI-I Dual Link Receptacle for PCB Mount

The Molex MicroCross 743201004 is a 29-contact DVI-I Dual Link receptacle designed for right-angle through-hole PCB mounting. It carries the full complement of digital and analog video pins defined by the DVI-I standard — 24 digital pins for the dual-link TMDS channels plus the 5 analog pins (RGB, HSync, VSync) and the C1–C5 flat-panel detect pins, all in a single connector body. The steel shell provides continuous shielding around the contact array, and the white insulation colour is the standard visual identifier for a DVI-I (integrated analog + digital) port as opposed to the grey DVI-D (digital-only) housing. Rated 3A per contact at 40VAC, the current capacity is sized for the signal-level draw of a video interface — the limiting factor is the contact density in the 29-position layout, not the contact beam itself. The gold-plated contacts support the 100 mating cycles typical for a rear-panel I/O port that sees occasional monitor swaps or field-service reconnects.

This receptacle mounts through the PCB with solder tails and secures to the panel via a horizontal flange with threaded inserts for the standard DVI jackscrew fasteners.
