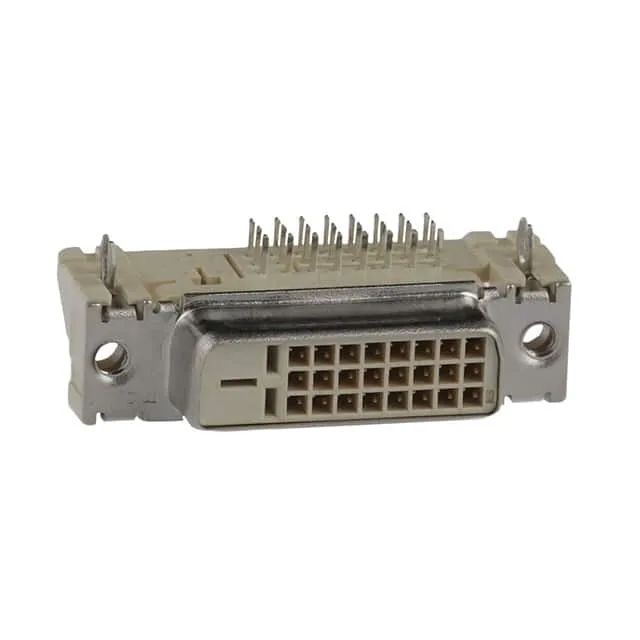

Molex MicroCross 743209004 DVI-D Dual Link Receptacle

MPN743209004
Active

Molex MicroCross 74320 DVI-D Dual Link receptacle, 24 contacts, right-angle PCB mount, shielded, gold-plated contacts, 3A per contact, 40VAC, board lock, UL94 V-0.

$5.15Ref. price · indicative, final on quote
743209004 datasheet
StockIn Stock (23)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

743209004 Technical Specifications
ParameterValue
SeriesMicroCross 74320
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeDVI-D, Dual Link
Voltage - rated40VAC
Current rating3A per Contact
Positions24
Mounting featureFlange, Horizontal
Operating temperature-20°C ~ 85°C
Insulation colorNatural
Shell (Shielding material)Steel
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles100
Contact finishGold
Number of ports1

Product details

DVI-D Dual Link PCB Receptacle

The Molex 743209004 is a 24-contact DVI-D Dual Link receptacle from the MicroCross 74320 series, designed for digital video transmission at up to 40VAC. It mounts through-hole, right-angle to the PCB, with a horizontal flange for panel mounting — the standard layout for a desktop GPU or monitor input port. The shielded steel shell and board lock hold the connector solid against cable strain during assembly and in the field. The 100 mating cycle rating means this is a set-and-forget port — fine for a fixed installation or a monitor back panel, but not for a daily-disconnect test cable.

Board Fit and Mounting

The 24-contact layout follows the DVI-D Dual Link pinout: 24 pins in three rows, with the analog pins (C1–C5) omitted. This is a pure digital receptacle — it does not carry the analog VGA signals that a DVI-I connector includes. If your design needs analog compatibility, you need a DVI-I receptacle, not this DVI-D part.

Frequently asked questions

Is the 743209004 compatible with DVI-I?

No. The 743209004 is a DVI-D Dual Link receptacle, which carries only the digital TMDS signals and the +5V supply. It lacks the four analog pins (C1–C5) that a DVI-I connector includes, so it will not pass an analog VGA signal. A DVI-D plug will mate mechanically, but a DVI-I plug's extra pins have no corresponding contacts in this receptacle.
