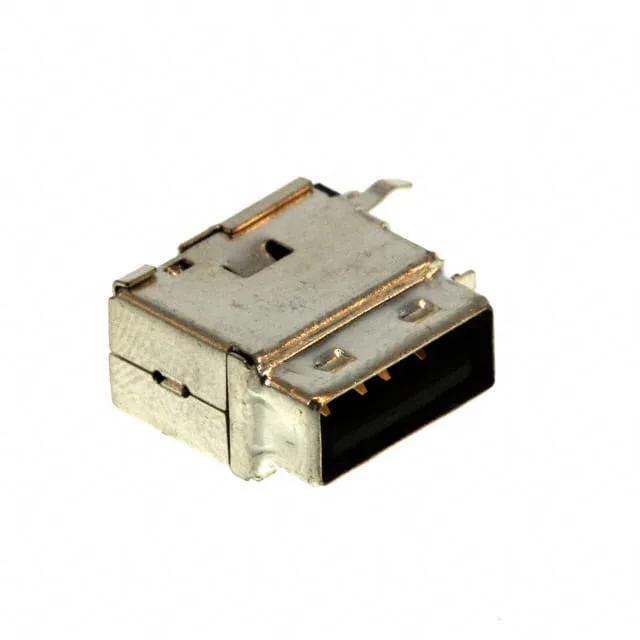

894858000 — Molex product photo
Molex

894858000 USB-A Receptacle, 4 Pos, Right Angle, Shielded

MPN894858000
Active

89485 series USB-A (USB Type-A) receptacle, 4 contacts, right-angle through-hole, shielded, board lock, gold contacts, 1 A per contact, 750 VAC, USB 2.0.

$1.89Ref. price · indicative, final on quote
894858000 datasheet
StockIn Stock (14)
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

894858000 Technical Specifications
ParameterValue
Series89485
Mounting typeThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated750VAC
Current rating1A per Contact
Positions4
Mounting featureVertical
Operating temperature0°C ~ 50°C
Insulation colorBlack
Shell (Shielding material)Steel
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB 2.0 Type-A Receptacle for Panel-Mount PCB Applications

The mating interface is the standard USB Type-A plug found on cables and thumb drives — this is the downstream port side, not the cable end. Rated operating temperature is 0°C to 50°C, which is a standard commercial range — this is not an industrial or outdoor part.

Voltage and Current — What the Ratings Mean

The 1 A per contact current rating is the USB 2.0 standard for a downstream port. The 750 VAC voltage rating is a dielectric withstand spec, not the operating bus voltage. The steel shell provides the ground path and EMI containment that the USB specification requires for radiated emissions compliance.

The 894858000 is listed as Active on the manufacturer's lifecycle record. It is ROHS3 compliant.
