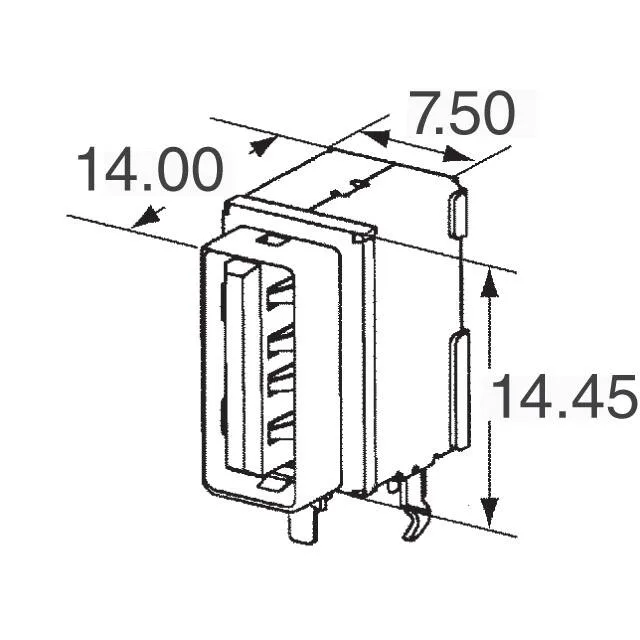

Molex 89485 Series USB-A (USB TYPE-A) Receptacle, 4 Contacts, 1 Port, Right Angle, Through Hole, Solder Termination, Shielded, Gold Contact Finish, Board Lock, Tray
| Parameter | Value |
|---|---|
| Series | 89485 |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 750VAC |
| Current rating | 1A per Contact |
| Positions | 4 |
| Mounting feature | Vertical |
| Operating temperature | 0°C ~ 50°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
It carries a shielded steel shell for EMI containment and a board lock feature that anchors the connector against the insertion and withdrawal forces of repeated USB plug cycles.
The steel shell provides continuous shielding around the mating interface, which is necessary for maintaining signal integrity at USB 2.0 data rates (480 Mbps).
Current pricing and availability are confirmed at the time of quote — no stock-holding claim is made on this listing.
Yes, the 894858001 is listed as ROHS3 Compliant, meeting the latest RoHS directive for restricted substances.
As a standard USB 2.0 Type-A receptacle, the 894858001 uses the standard four-contact pinout: VBUS (power), D-, D+, and GND. The exact pin numbering is defined by the USB 2.0 specification and is consistent across all standard Type-A receptacles.
