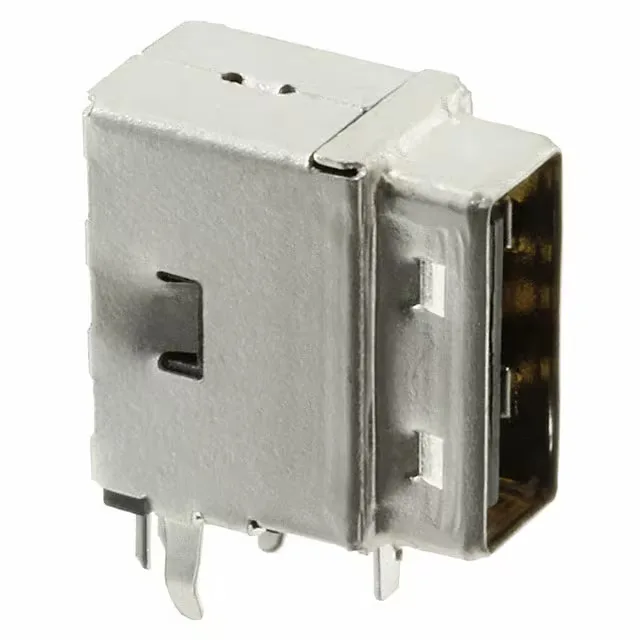

894858003 — Molex product photo
Molex

894858003 USB-A Receptacle, 4 Pos, Right Angle, Board Lock

MPN894858003
Active

89485 series USB 2.0 Type-A receptacle, 4 contacts, right-angle through-hole, shielded, gold-plated contacts, board lock, tray.

$2.31Ref. price · indicative, final on quote
894858003 datasheet
StockIn Stock (18)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

894858003 Technical Specifications
ParameterValue
Series89485
Mounting typeThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated750VAC
Current rating1A per Contact
Positions4
Mounting featureVertical
Operating temperature0°C ~ 50°C
Insulation colorBlack
Shell (Shielding material)Steel
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

The 894858003 is a standard USB 2.0 Type-A receptacle from the 89485 series, with 4 contacts in a single port.

Rated 1 A per contact. The 750 VAC rating is an isolation rating, not an operating voltage. The right-angle orientation means the PCB footprint needs clearance behind the port for the solder tails.

Board Lock and Mechanical Retention

In a wave-solder or selective-solder process, these keep the connector from lifting during the thermal cycle. They also take the shear load from cable insertion and extraction, which means the 4 signal pins don't bear the mechanical stress.

Frequently asked questions

Is the 894858003 RoHS compliant?

Yes, the 894858003 carries a ROHS3 compliance status, meaning it meets the latest RoHS directive including the four phthalates.

Does the 894858003 have a board lock?

Yes, the 894858003 includes a board lock feature — two through-hole solder tabs on the shielded shell that anchor the connector to the PCB for mechanical retention during soldering and use.
