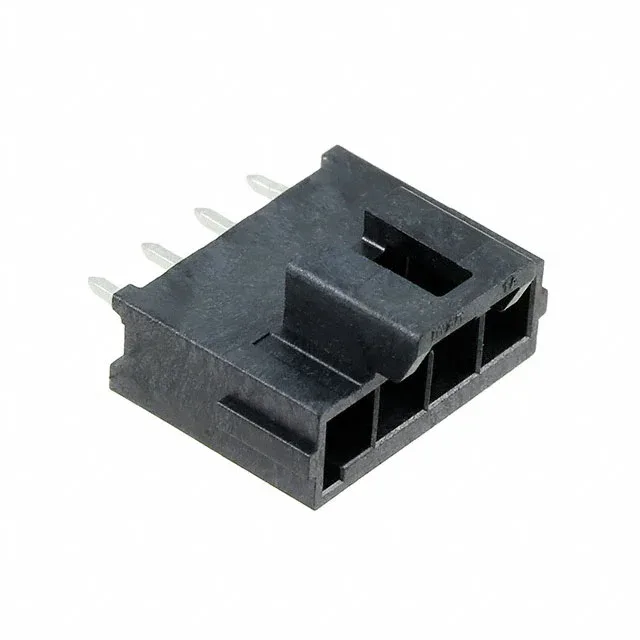

5Ultra-Fit 172286Board Guide
Ref. price$1.0200
Lead time on requestGet quote ›
Molex 1722 Series
23 variants · Molex
About the Molex 1722 Series
The Molex 1722 Series series groups 23 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications, connector type of Header and contact finish - post of Tin. Variants differ by contact finish - mating, contact finish thickness - mating and features, so you can match the exact contact finish - mating your application requires using the selection guide below. All listed Molex 1722 Series part numbers are active and orderable.
Select a variant by
- Contact finish - mating
- Gold · Tin
- Contact finish thickness - mating
- 15.0µin (0.38µm) · 30.0µin (0.76µm) · 60.0µin (1.52µm)
- Features
- Board Guide · Board Guide, Solder Retention · Solder Retention
- Insulation color
- Black · Natural
- Operating temperature
- -40°C ~ 105°C · -40°C ~ 120°C
- Package
- Bulk · Tray
- Positions
- 2 · 3 · 4 · 5 · 6 · 8 · 10 · 12
- Row spacing - mating
- - · 0.181\" (4.60mm)
Shared specifications
- Applications
- Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
- Connector type
- Header
- Contact finish - post
- Tin
- Contact finish thickness - post
- 60.0µin (1.52µm)
- Contact length - mating
- -
- Contact length - post
- 0.126\" (3.20mm)
- Contact material
- Copper Alloy
- Contact shape
- Square
- Current rating
- -
- Fastening type
- Latch Holder
- Gender
- Male Pin
- Ingress protection
- -
Variant comparison
| Parameter | 1722861105 | 1722861202 | 1722861203 | 1722861204 | 1722871106 | 1722871205 |
|---|---|---|---|---|---|---|
| Contact finish - mating | Tin | Gold | Gold | Gold | Tin | Gold |
| Contact finish thickness - mating | 60.0µin (1.52µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 60.0µin (1.52µm) | 15.0µin (0.38µm) |
| Features | Board Guide | Board Guide | Board Guide | Board Guide | Solder Retention | Solder Retention |
| Insulation color | Black | Black | Black | Black | Black | Black |
| Operating temperature | -40°C ~ 105°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 105°C | -40°C ~ 120°C |
| Package | Bulk | Tray | Tray | Tray | Bulk | Bulk |
| Positions | 5 | 2 | 3 | 4 | 6 | 5 |
| Row spacing - mating | - | - | - | - | - | - |
