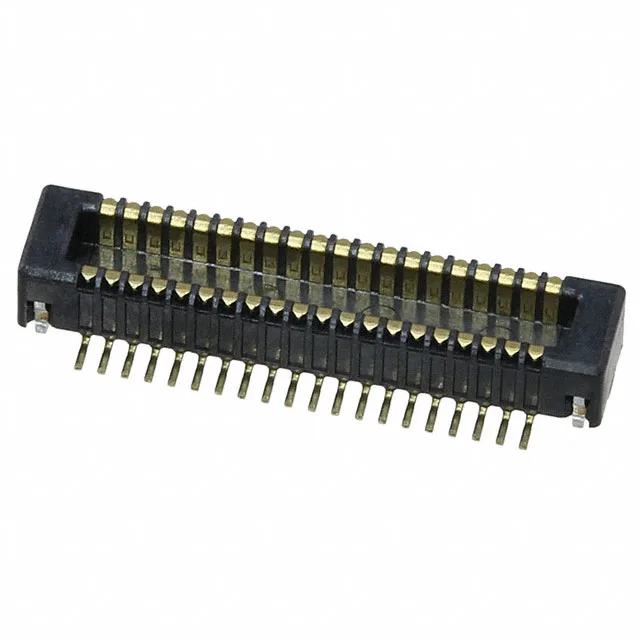

5017450301
Molex
300.016\" (0.40mm)SlimStack 501745
Ref. price$1.6200
Lead time on requestGet quote
Molex 5017 Mezzanine Stacking Series
2 variants · Molex
About the Molex 5017 Mezzanine Stacking Series
The Molex 5017 Mezzanine Stacking Series series groups 2 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Plug, Outer Shroud Contacts, contact finish of Gold and contact finish thickness of 8.00µin (0.203µm). Variants differ by positions, so you can match the exact positions your application requires using the selection guide below. All listed Molex 5017 Mezzanine Stacking Series part numbers are active and orderable.
Select a variant by
- Positions
- 30 · 40
Shared specifications
- Connector type
- Plug, Outer Shroud Contacts
- Contact finish
- Gold
- Contact finish thickness
- 8.00µin (0.203µm)
- Features
- Solder Retention
- Height above board
- 0.064\" (1.64mm)
- Mated stacking heights
- 2mm, 2.3mm
- Mounting
- Surface Mount
- Package
- Tape & Reel (TR) Cut Tape (CT)
- Pitch
- 0.016\" (0.40mm)
- Rows
- 2
Variant comparison
| Parameter | 5017450301 | 5017450401 |
|---|---|---|
| Positions | 30 | 40 |
Request a quote on any Molex 5017 Mezzanine Stacking Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
