NorComp Inc. 171-050-103L001
MPN171-050-103L001
Active

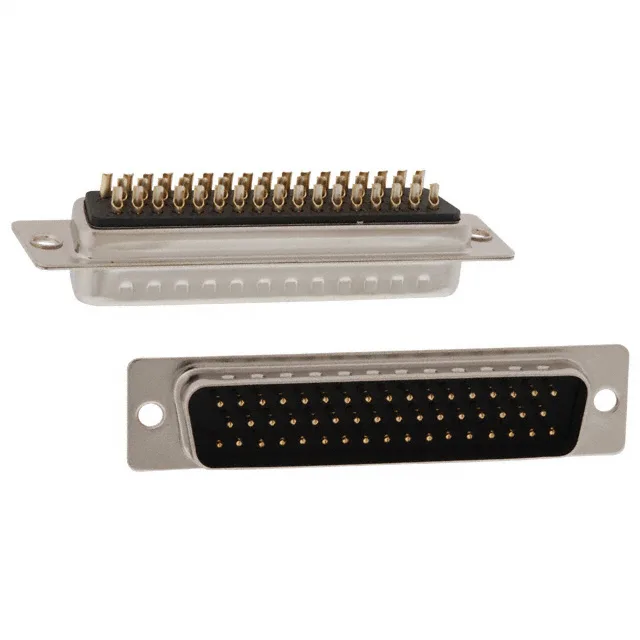

CONN D-SUB PLUG 50POS PNL MNT
$5.66Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series171
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 171 |
| Type | Signal |
| Mounting | Panel Mount |
| Connector type | Plug, Male Pins |
| Current rating | 5A |
| Contact form | Stamped |
| Wire gauge | 20-28 AWG |
| Shell size, connector layout | 5 (DD, D) |
| Operating temperature | -50°C ~ 100°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Grounding Indents |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 3 |
| Positions | 50 |
| Contact finish thickness | Flash |
