NorComp Inc. 172-E25-102R001
MPN172-E25-102R001
Active

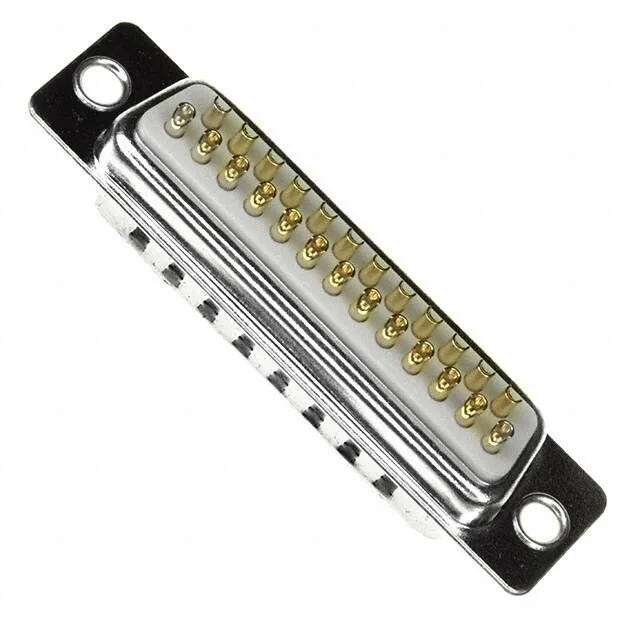

CONN D-SUB PLUG 25POS PNL MNT
$4.67Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series172-E, M Series
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 172-E, M Series |
| Type | Signal |
| Mounting | Panel Mount |
| Connector type | Plug, Male Pins |
| Current rating | 5A |
| Contact form | Machined |
| Wire gauge | 20-26 AWG |
| Shell size, connector layout | 3 (DB, B) |
| Operating temperature | -50°C ~ 100°C |
| Color | White |
| Contact material | Brass |
| Dielectric material | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Grounding Indents |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 25 |
| Contact finish thickness | Flash |
