NorComp Inc. 173-E50-113R001
MPN173-E50-113R001
Active

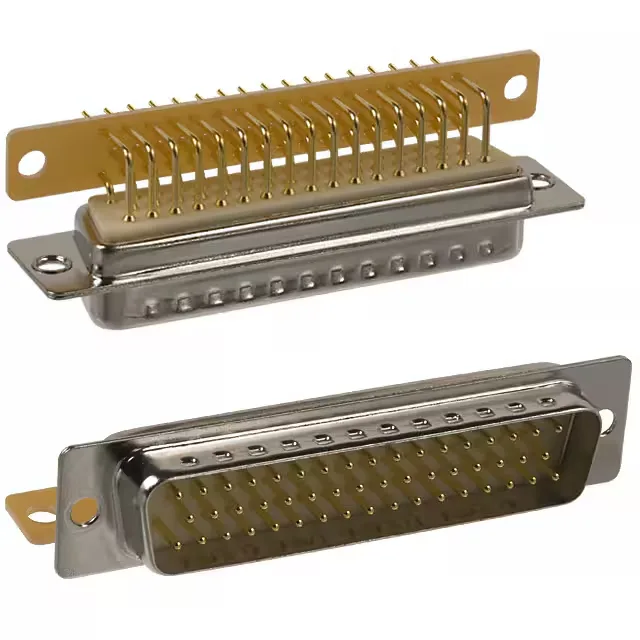

CONN D-SUB PLUG 50POS R/A SLDR
$22.52Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series173-E, M Series
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 173-E, M Series |
| Type | Signal |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Current rating | 5A |
| Contact form | Machined |
| Shell size, connector layout | 5 (DD, D) |
| Operating temperature | -50°C ~ 100°C |
| Color | White |
| Contact material | Brass |
| Dielectric material | Polyamide (PA6T), Nylon 6T |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 3 |
| Backset spacing | 0.283\" (7.20mm) |
| Positions | 50 |
| Contact finish thickness | Flash |
