NorComp Inc. 174-E09-113R001
MPN174-E09-113R001
Active

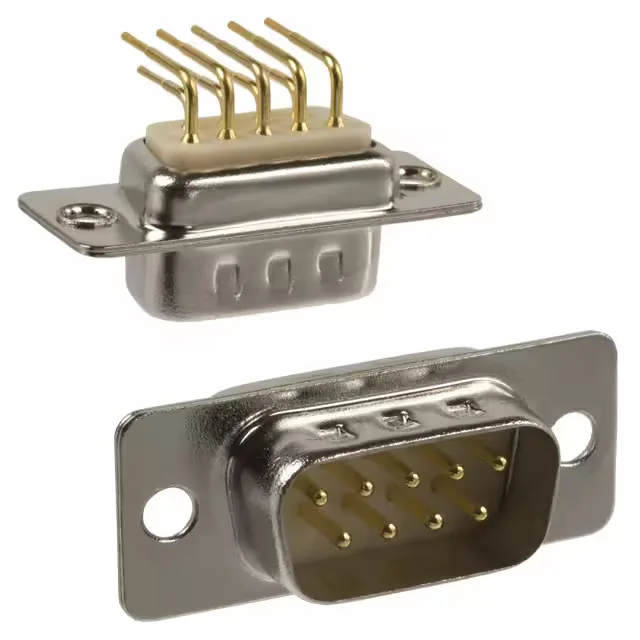

CONN D-SUB PLUG 9POS R/A SLDR
$4.85Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series174-E, M Series
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 174-E, M Series |
| Type | Signal |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Current rating | 5A |
| Contact form | Machined |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -50°C ~ 100°C |
| Color | White |
| Dielectric material | Polyamide (PA6T), Nylon 6T |
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Backset spacing | 0.370\" (9.40mm) |
| Positions | 9 |
| Contact finish thickness | Flash |
