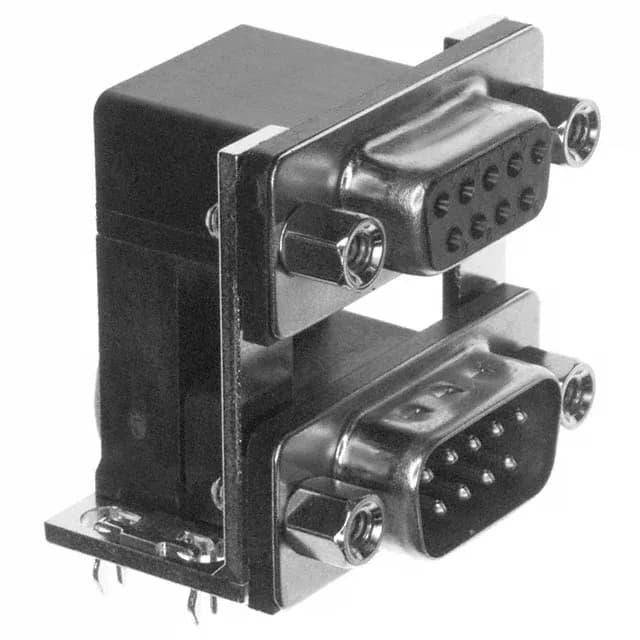

NorComp Inc. 178-009-313R571
MPN178-009-313R571
Active
CONN D-SUB PLUG/RCPT 9P R/A SLDR
$8.7600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series178
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 178 |
| Type | Signal |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Plug, Male Pins; Receptacle, Female Sockets |
| Current rating | 5A |
| Contact form | Stamped |
| Shell size, connector layout | 1 (DE, E); 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Dielectric material | Polyamide (PA9T), Nylon 9T |
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock, Grounding Indents, Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 2, 2 |
| Backset spacing | 0.318\" (8.08mm) |
| Positions | 9, 9 |
| Contact finish thickness | Flash |
