NorComp Inc. 179-037-513R571
MPN179-037-513R571
Active

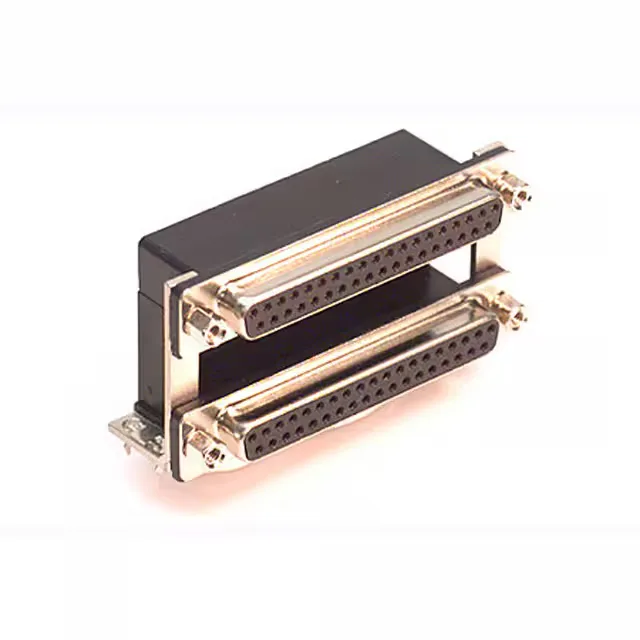

CONN D-SUB RCPT 37POS R/A SLDR
$19.81Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series179
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 179 |
| Type | Signal |
| Mounting | Board Edge, Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Current rating | 5A |
| Contact form | Stamped |
| Shell size, connector layout | 4 (DC, C); 4 (DC, C) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polyamide (PA9T), Nylon 9T |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock, Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (4-40) |
| Rows | 2, 2 |
| Backset spacing | 0.318\" (8.08mm) |
| Positions | 37, 37 |
| Contact finish thickness | Flash |
