NorComp Inc. 180-015-113R001
MPN180-015-113R001
Active

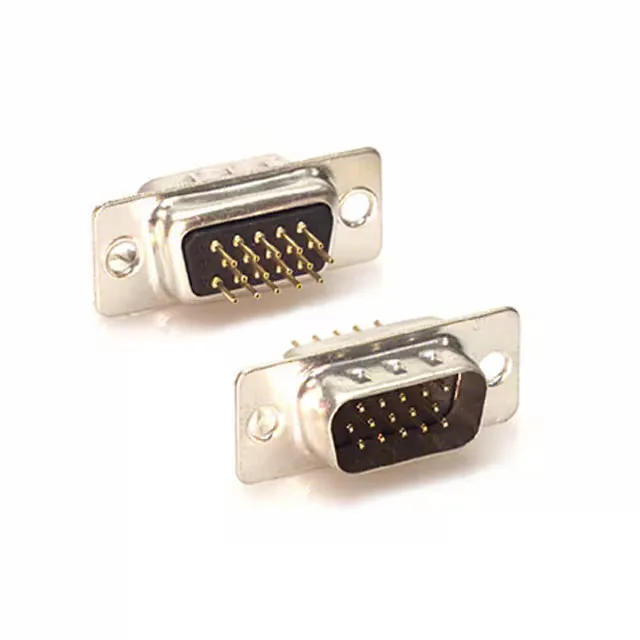

CONN D-SUB HD PLUG 15POS PNL MNT
$3.03Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series180
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 180 |
| Type | Signal |
| Mounting | Panel Mount, Through Hole |
| Connector type | D-Sub, High Density |
| Current rating | 3A |
| Shell size, connector layout | 1 (DE, E) High Density |
| Operating temperature | -50°C ~ 100°C |
| Contact material | Brass |
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Features | Grounding Indents, Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 3 |
| Positions | 15 |
| Contact finish thickness | Flash |
