NorComp Inc. 180-M15-203L021
MPN180-M15-203L021
Active

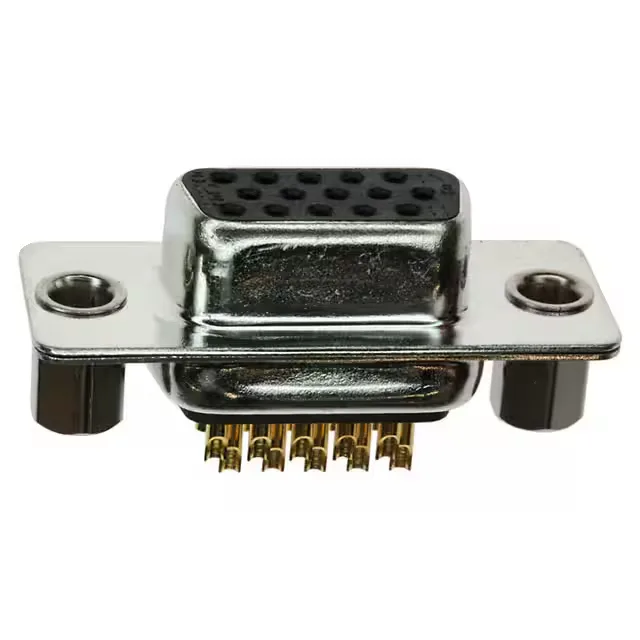

CONN D-SUB HD RCPT 15POS PNL MNT
$8.13Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series180-M, M Series
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 180-M, M Series |
| Type | Signal |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Current rating | 3A |
| Contact form | Machined |
| Wire gauge | 24-28 AWG |
| Shell size, connector layout | 1 (DE, E) High Density |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Shielded |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Cable Side (4-40) |
| Rows | 3 |
| Positions | 15 |
| Contact finish thickness | Flash |
