NorComp Inc. 180-M26-213R911
MPN180-M26-213R911
Active

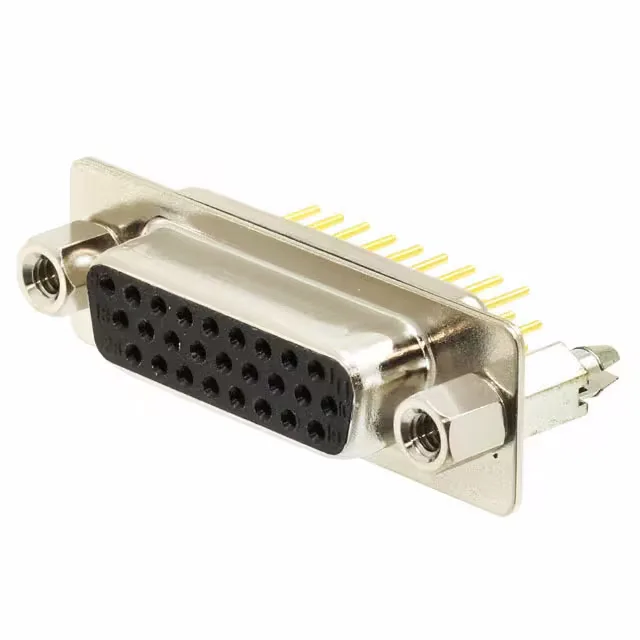

CONN D-SUB HD RCPT 26POS PNL MNT
$11.98Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series180-M, M Series
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 180-M, M Series |
| Type | Signal |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Female Sockets |
| Current rating | 5A |
| Contact form | Machined |
| Shell size, connector layout | 2 (DA, A) High Density |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polyamide (PA9T), Nylon 9T |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock, Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Board Side (4-40); Mating Side, Female Screwlock (4-40) |
| Rows | 3 |
| Positions | 26 |
| Contact finish thickness | Flash |
