NorComp Inc. 183-037-213R171
MPN183-037-213R171
Active

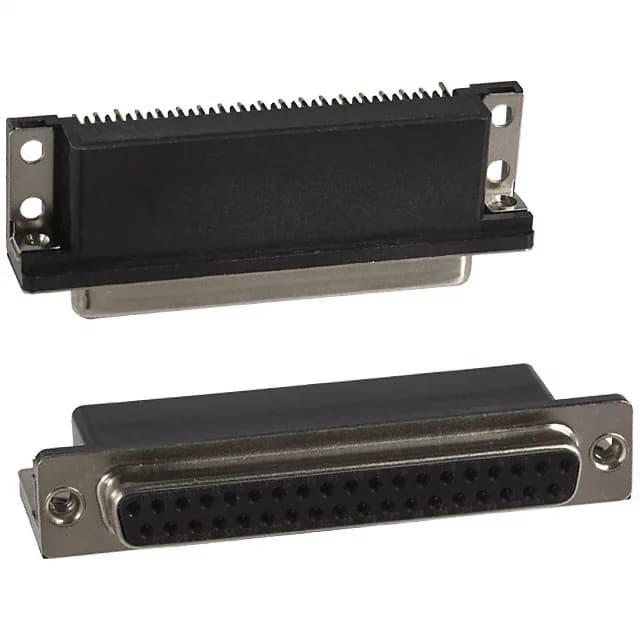

CONN D-SUB RCPT 37POS R/A SLDR
$9.6200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series183
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 183 |
| Type | Signal |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Current rating | 5A |
| Shell size, connector layout | 4 (DC, C) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polyamide (PA9T), Nylon 9T |
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Ground Strap |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Backset spacing | 0.590\" (14.99mm) |
| Positions | 37 |
| Contact finish thickness | Flash |
