NorComp Inc. 184A009-292L011
MPN184A009-292L011
Active

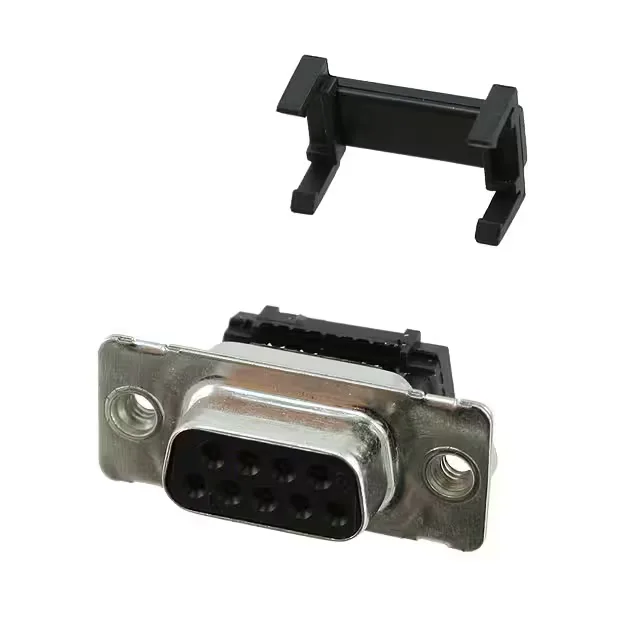

CONN D-SUB RCPT 9POS PNL MNT IDC
$20.34Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series184A
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 184A |
| Type | Signal |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Current rating | 1.5A |
| Wire gauge | 28 AWG, Stranded |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polyester, Glass Filled |
| Shell material, finish | Steel, Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Feed Through, Strain Relief |
| Termination | IDC, Ribbon Cable |
| Contact finish | Gold |
| Flange feature | Cable Side (4-40) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | Flash |
