NorComp Inc. 190-009-163R001
MPN190-009-163R001
Active

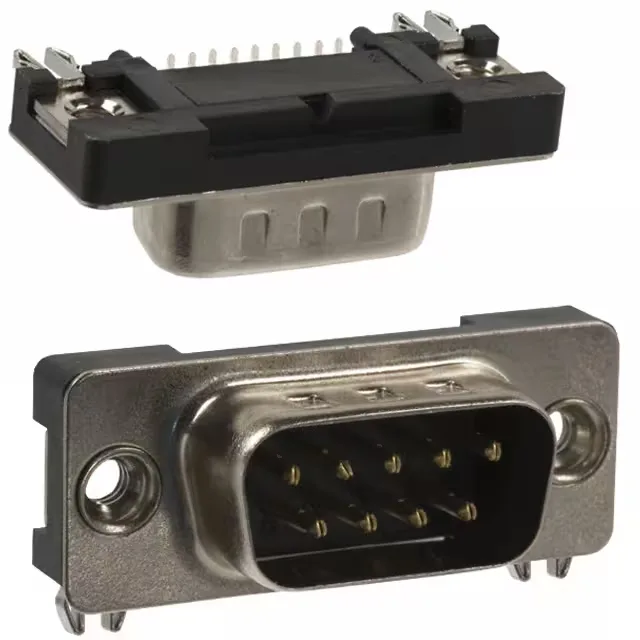

CONN D-SUB PLUG 9P SMD R/A SLDR
$3.64Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series190
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 190 |
| Type | Signal |
| Mounting | Board Edge, Surface Mount, Right Angle |
| Connector type | Plug, Male Pins |
| Voltage rating | 300V |
| Current rating | 5A |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Polyamide (PA6T), Nylon 6T |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Board Guide, Board Lock, Grounding Indents, Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | Flash |
