26633601RP2
NorComp Inc. 26633601RP2
MPN26633601RP2
Active
CONN HEADER VERT 36POS 2MM
$3.81Ref. price · indicative, final on quote
Price breaks USDindicative — final on quote
1+ $3.8100010+ $3.46200100+ $3.05020500+ $2.592681,000+ $2.211405,000+ $1.98263
RoHSROHS3 Compliant
StockContact for availability
MOQ1 pcs
Series2663
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | 2663 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 1A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |

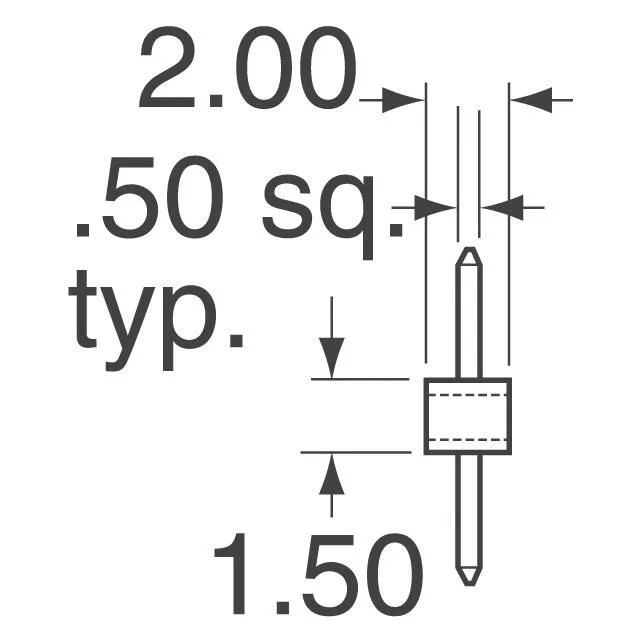

| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Number of rows | 1 |
| Pitch - mating | 0.079\" (2.00mm) |
| Positions | 36 |
| Contact finish - post | Gold |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.327\" (8.30mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.150\" (3.81mm) |
| Number of positions loaded | All |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
