NorComp Inc. 381-009-112L565
MPN381-009-112L565
Active

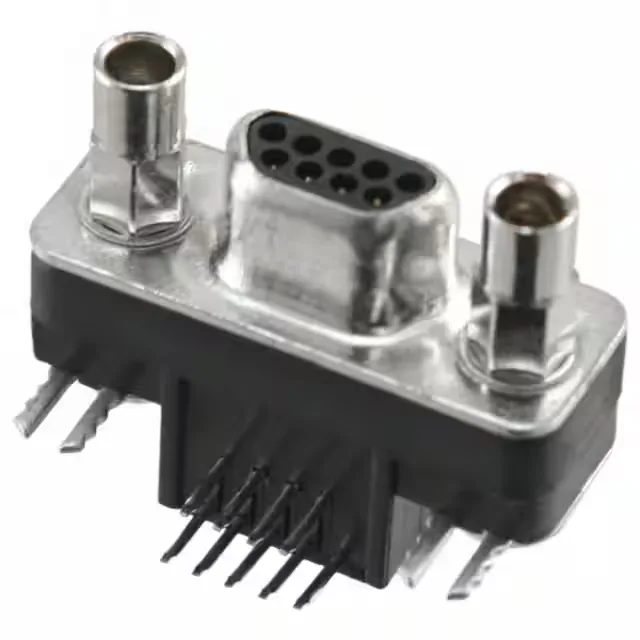

CONN MICRO-D PLUG 9POS R/A SLDR
$26.35Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro-D 381
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro-D 381 |
| Type | Signal |
| Mounting | Board Edge, Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Current rating | 1A |
| Shell size, connector layout | 0.050 Pitch x 0.043 Row to Row |
| Operating temperature | -55°C ~ 85°C |
| Contact material | Copper Alloy |
| Dielectric material | Thermoplastic |
| Shell material, finish | Steel, Tin Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Lock, Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (2-56) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | 15.0µin (0.38µm) |
