NorComp Inc. 580-M09-213L002
MPN580-M09-213L002
Active

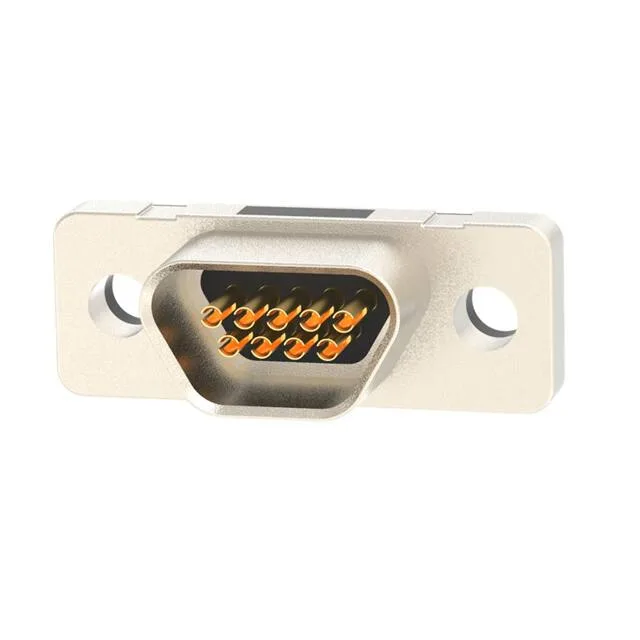

CONN MICRO-D FEMALE 9P VRT PCB 3
$25.37Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series580
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 580 |
| Type | Signal |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 60VDC |
| Current rating | 2A |
| Contact form | Machined |
| Shell size, connector layout | 0.050 Pitch x 0.043 Row to Row |
| Operating temperature | -40°C ~ 125°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Shell material, finish | Zinc Alloy, Nickel Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | 30.0µin (0.76µm) |
