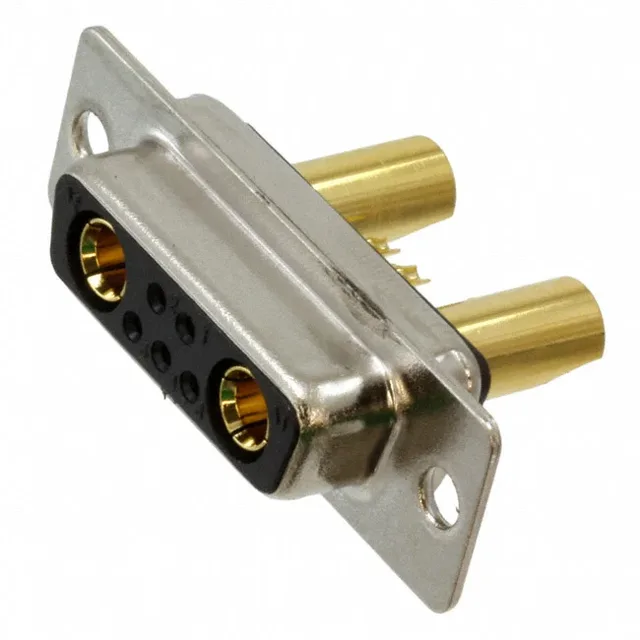

NorComp Inc. 680S7W2203L201
MPN680S7W2203L201
Active
CONN D-SUB RCPT 7POS PNL MNT
$18.79Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSeal-D 680S
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Seal-D 680S |
| Type | Signal and Power |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Current rating | 5A, 20A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Shell size, connector layout | 2 (DA, A) - 7W2 |
| Operating temperature | -55°C ~ 155°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 7 (5 + 2 Power) |
| Contact finish thickness | Flash |
