NorComp Inc. 681M17W2103L001
MPN681M17W2103L001
Active

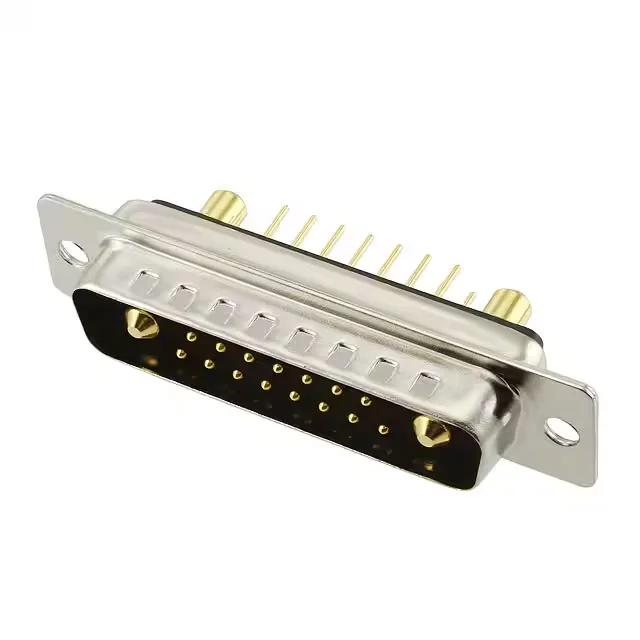

CONN D-SUB PLUG 17P PNL MNT SLDR
$11.75Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPower-D 681M
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Power-D 681M |
| Type | Signal and Power |
| Mounting | Panel Mount, Through Hole |
| Connector type | Plug, Male Pins |
| Current rating | 5A, 40A |
| Contact form | Machined |
| Shell size, connector layout | 3 (DB, B) - 17W2 |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 17 (15 + 2 Power) |
| Contact finish thickness | Flash |
