NorComp Inc. 682M13W3203L001
MPN682M13W3203L001
Active

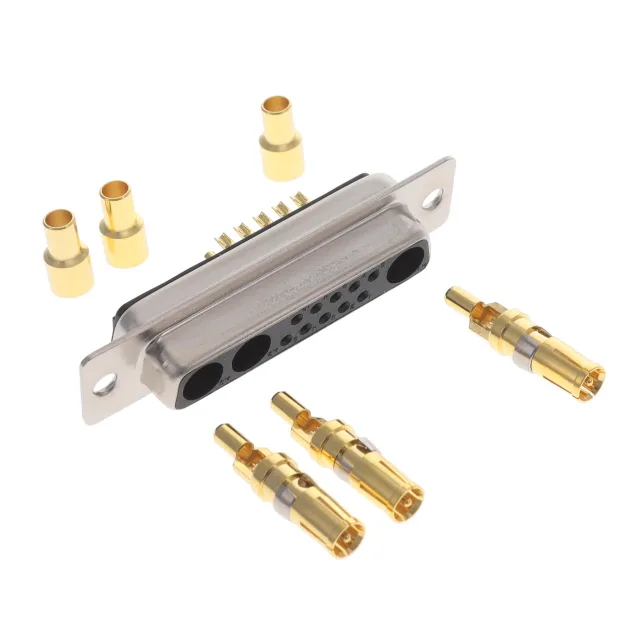

CONN D-SUB RCPT 13P PNL MNT
$13.13Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series682M
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 682M |
| Type | Coax and Signal |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 250V |
| Contact form | Machined |
| Wire gauge | 20 AWG, RG-174, 316 |
| Shell size, connector layout | 3 (DB, B) - 13C3, 13W3 |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 13 (10 + 3 Coax) |
| Contact finish thickness | Flash |
