NorComp Inc. 684M21WA4PL461
MPN684M21WA4PL461
Active

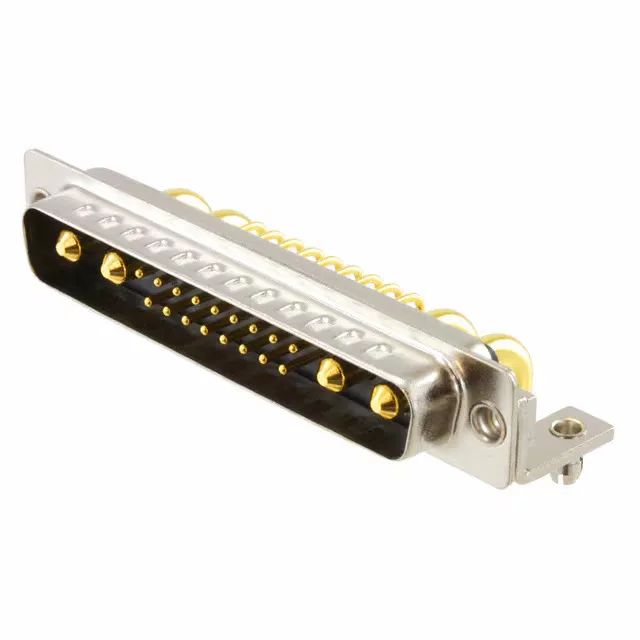

CONN D-SUB PLUG 21POS R/A SLDR
$19.81Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPower-D 684M
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Power-D 684M |
| Type | Signal and Power |
| Mounting | Board Edge, Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Current rating | 5A, 40A |
| Contact form | Machined |
| Shell size, connector layout | 4 (DC, C) - 21WA4 |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Backset spacing | 0.401\" (10.20mm) |
| Positions | 21 (17 + 4 Power) |
| Contact finish thickness | Flash |
