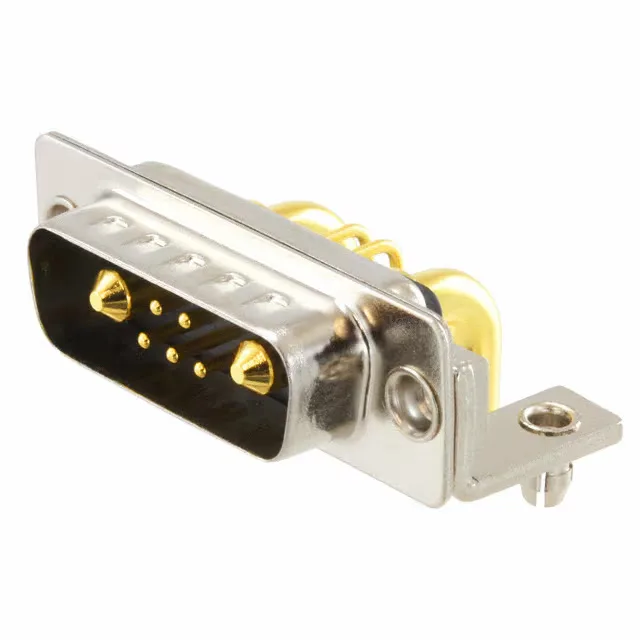

NorComp Inc. 684M7W2103L461
MPN684M7W2103L461
Active
CONN D-SUB PLUG 7POS R/A SLDR
$13.02Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPower-D 684M
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Power-D 684M |
| Type | Signal and Power |
| Mounting | Board Edge, Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Current rating | 5A, 40A |
| Contact form | Machined |
| Shell size, connector layout | 2 (DA, A) - 7W2 |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Backset spacing | 0.401\" (10.20mm) |
| Positions | 7 (5 + 2 Power) |
| Contact finish thickness | Flash |
