NorComp Inc. 772-E09-203R011
MPN772-E09-203R011
Active

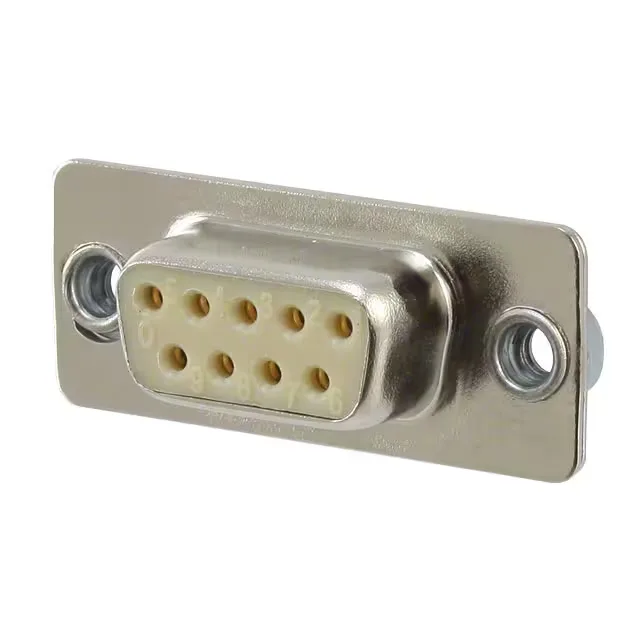

CONN D-SUB RCPT 9POS PNL MNT
$10.36Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSeal-D 772-E
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Seal-D 772-E |
| Type | Signal |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Current rating | 5A |
| Contact form | Machined |
| IP rating | IP67 - Dust Tight, Waterproof |
| Wire gauge | 20-26 AWG |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -50°C ~ 100°C |
| Color | White |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Dielectric material | Polybutylene Terephthalate (PBT) |
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Cable Side (4-40) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | Flash |
