NorComp Inc. 780-M44-103L001
MPN780-M44-103L001
Active

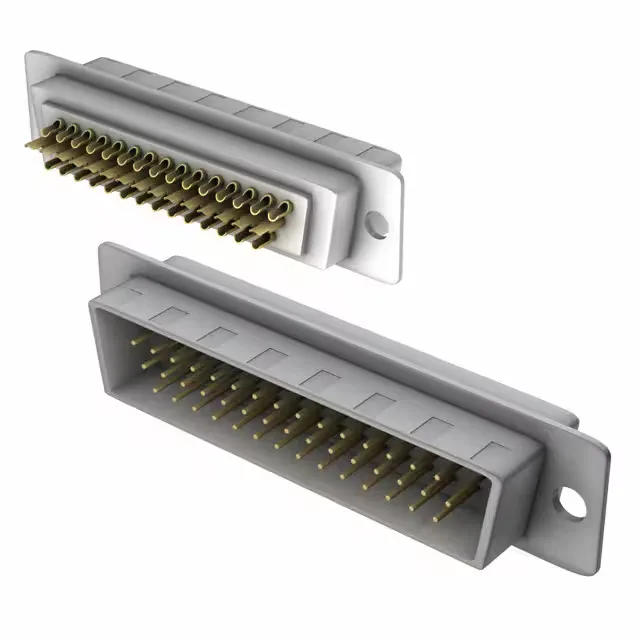

CONN D-SUB HD PLUG 44POS PNL MNT
$15.71Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSeal-D 780-M
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Seal-D 780-M |
| Type | Signal |
| Mounting | Panel Mount |
| Connector type | D-Sub, High Density |
| Current rating | 5A |
| Contact form | Machined |
| IP rating | IP67 - Dust Tight, Waterproof |
| Wire gauge | 24-28 AWG |
| Shell size, connector layout | 3 (DB, B) High Density |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Nickel Plated |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Grounding Indents |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 3 |
| Positions | 44 |
| Contact finish thickness | Flash |
