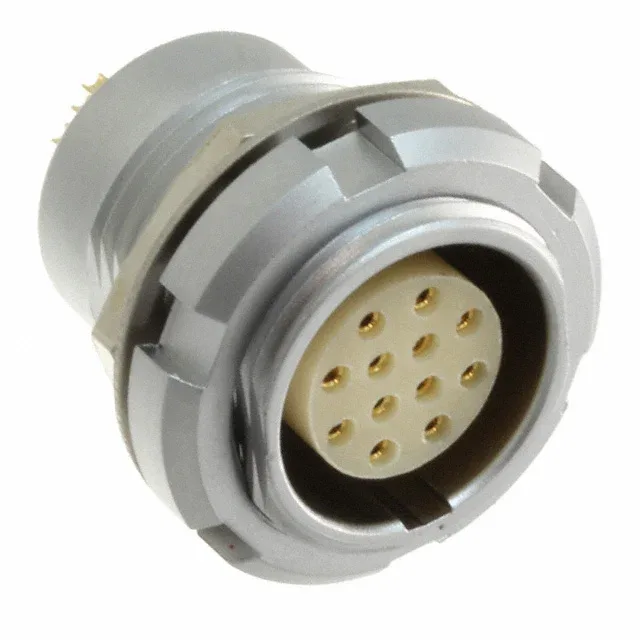

NorComp Inc. 822B012-203R001
MPN822B012-203R001
Active
CONN RCPT FMALE 12P SOLDER CUP
$50.57Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesQUIK-LOQ™ 822B
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | QUIK-LOQ™ 822B |
| Mounting | Panel Mount |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Pull |
| Voltage rating | 480V |
| Current rating | 7A |
| IP rating | IP50 - Dust Protected |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -40°C ~ 200°C |
| Color | Silver |
| Shell material | Brass |
| Insert material | Polyphenylene Sulfide (PPS) |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Metal |
| Package | Tray |
| Shielding | Shielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Shell finish | Nickel |
| Positions | 12 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 7.00µin (0.178µm) |
