NorComp Inc. 850-002-103RLU1
MPN850-002-103RLU1
Active

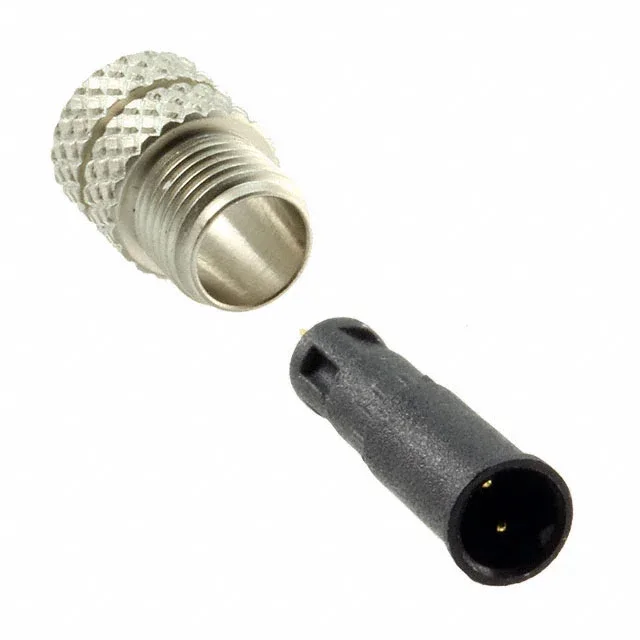

CONN RCPT MALE 2P GOLD SLDR CUP
$6.35Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesVULCON™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | VULCON™ |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Male Pins |
| Fastening type | Threaded |
| Voltage rating | 60V |
| Current rating | 1A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Operating temperature | -40°C ~ 85°C |
| Color | Silver |
| Shell material | Brass |
| Insert material | Thermoplastic Polyurethane (TPU) |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Industrial, Medical |
| Shell finish | Nickel |
| Positions | 2 |
| Shell size - insert | M5-2 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | Flash |
