NorComp Inc. 854-004-103RLS4
MPN854-004-103RLS4
Active

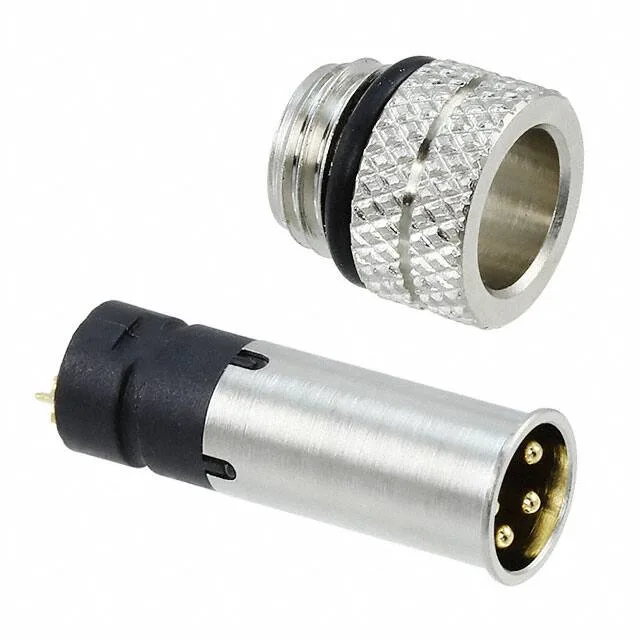

CONN RCPT MALE 4P GOLD SLDR CUP
$6.93Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesVULCON™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | VULCON™ |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Male Pins |
| Fastening type | Threaded |
| Voltage rating | 60V |
| Current rating | 3A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.244\" (6.20mm) |
| Operating temperature | -40°C ~ 85°C |
| Color | Black, Silver |
| Shell material | Copper Alloy |
| Insert material | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Metal |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Termination | Solder Cup |
| Applications | Industrial, Medical |
| Shell finish | Nickel |
| Positions | 4 |
| Shell size - insert | M8-4 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
