NorComp Inc. 858-005-203RSU4
MPN858-005-203RSU4
Active

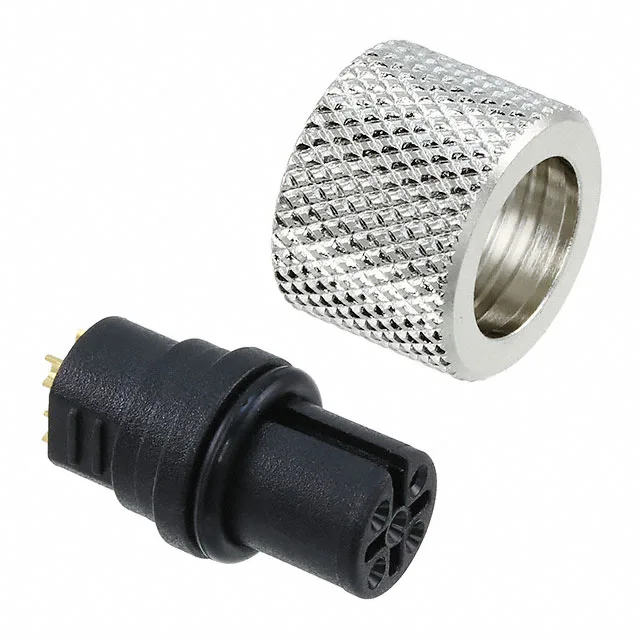

CONN PLUG FMALE 5P GOLD SLDR CUP
$10.41Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesVULCON™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | VULCON™ |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 60V |
| Current rating | 4A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Operating temperature | -40°C ~ 85°C |
| Color | Black, Silver |
| Shell material | Brass |
| Insert material | Polybutylene Terephthalate (PBT) |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Coupling Nut |
| Shielding | Unshielded |
| Orientation | A |
| Termination | Solder Cup |
| Applications | Industrial, Medical |
| Shell finish | Nickel |
| Positions | 5 |
| Shell size - insert | M12-5 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
