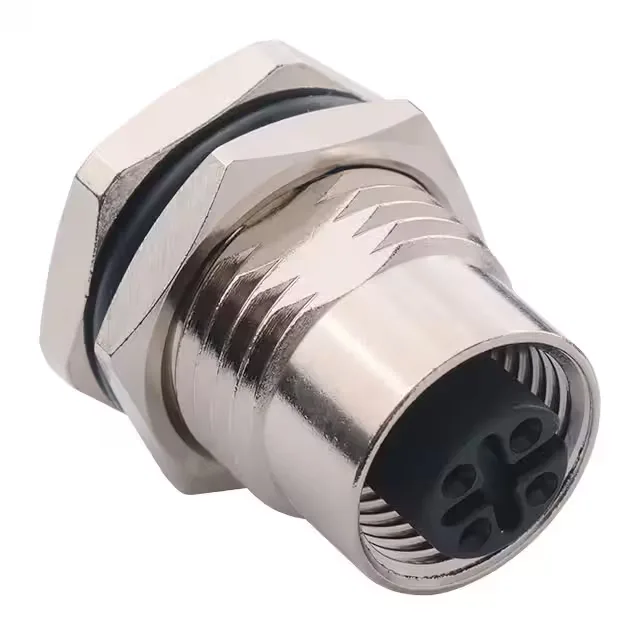

CONN PLUG FMALE 4POS GOLD SOLDER
$16.69Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | VULCON™ |
| Mounting type | Panel Mount, Through Hole |
| Connector type | Plug, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 250V |
| Current rating | 4A |
| Ingress protection | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -40°C ~ 85°C |
| Color | Silver |
| Shell material | Brass |
| Insert material | Polybutylene Terephthalate (PBT) |
| Contact material | Brass |
| Primary material | Metal |
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Shielding | Shielded |
| Orientation | A |
| Termination | Solder |
| Applications | Industrial, Medical |
| Shell finish | Nickel |
| Positions | 4 |
| Shell size - insert | M12-4 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
Sourcing this connector
NorComp Inc. 860-004-213R004 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against NorComp Inc. and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
