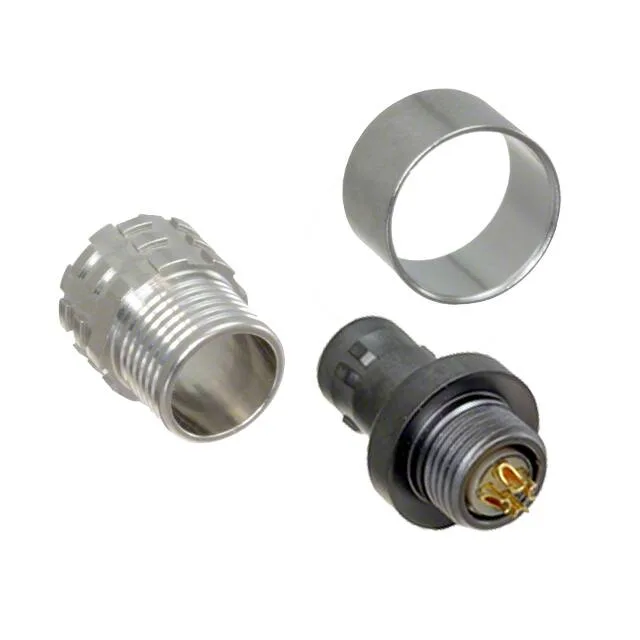

CONN PLUG MALE 4P GOLD SLDR CUP
$75.36Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | ODU AMC® |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Push-Pull |
| Voltage rating | 300V |
| Current rating | 7A |
| Ingress protection | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
| Cable opening | 0.217\" (5.50mm) |
| Operating temperature | -51°C ~ 125°C |
| Color | Black, Silver |
| Shell material | Aluminum |
| Insert material | Polyetheretherketone (PEEK) |
| Contact material | Copper Alloy |
| Primary material | Metal |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell |
| Shielding | Shielded |
| Orientation | A |
| Termination | Solder Cup |
| Applications | Industrial, Medical, Military |
| Shell finish | Ruthenium over Electroless Nickel |
| Positions | 4 |
| Shell size - insert | 0 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 49.3µin (1.25µm) |
Sourcing this connector
ODU A10YAR-P04XFG0-0000 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against ODU and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
