ODU S21M07-P04MJG0-527S
MPNS21M07-P04MJG0-527S
Active

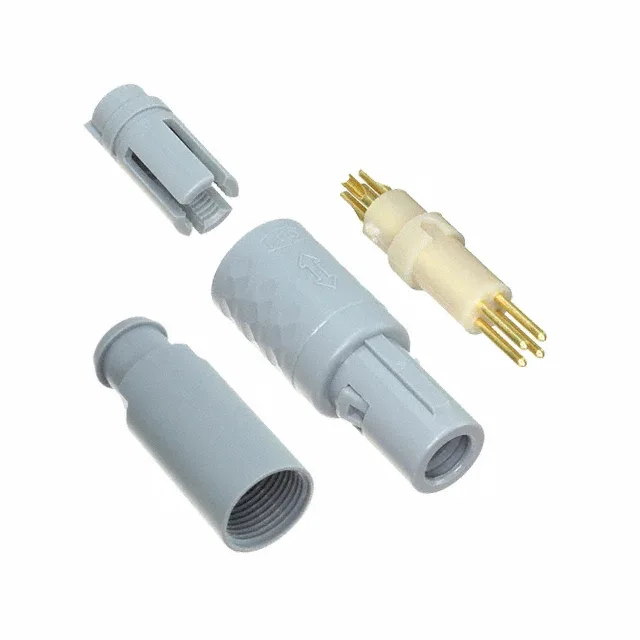

CONN PLUG MALE 4P GOLD SLDR CUP
$16.51Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesODU MEDI-SNAP®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ODU MEDI-SNAP® |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Push-Pull |
| Current rating | 10A |
| IP rating | IP50 - Dust Protected |
| Cable opening | 0.157\" ~ 0.205\" (4.00mm ~ 5.20mm) |
| Operating temperature | -50°C ~ 120°C |
| Color | Gray |
| Shell material | Polysulfone (PSU) |
| Insert material | Polyetheretherketone (PEEK) |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Plastic |
| Backshell material, plating | Polysulfone (PSU) |
| Package | Bulk |
| Features | Backshell, Strain Relief |
| Shielding | Unshielded |
| Orientation | 0 |
| Termination | Solder Cup |
| Applications | Industrial, Medical, Testing Equipment & Measurement |
| Positions | 4 |
| Shell size - insert | 1 |
| Contact finish - mating | Gold |
