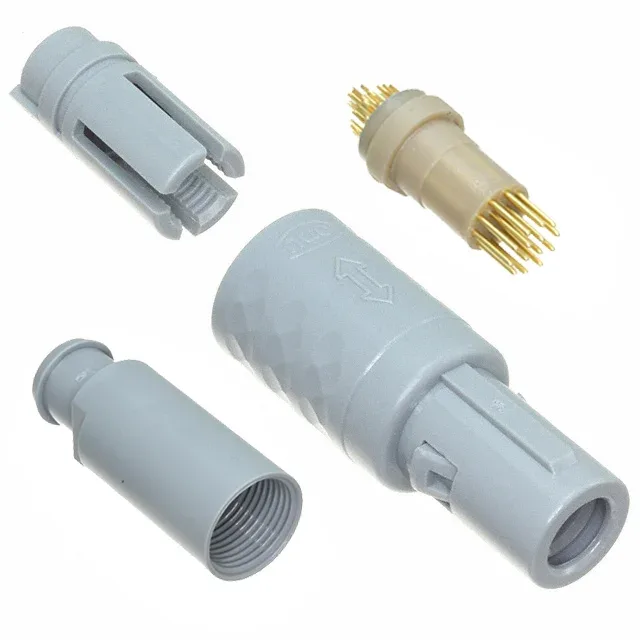

CONN PLUG MALE 14P GOLD SLDR CUP
$28.21Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | ODU MEDI-SNAP® |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Push-Pull |
| Current rating | 2.5A |
| Ingress protection | IP50 - Dust Protected |
| Cable opening | 0.157\" ~ 0.205\" (4.00mm ~ 5.20mm) |
| Operating temperature | -50°C ~ 120°C |
| Color | Gray |
| Shell material | Polysulfone (PSU) |
| Insert material | Polyetheretherketone (PEEK) |
| Contact material | Brass |
| Primary material | Plastic |
| Backshell material, plating | Polysulfone (PSU) |
| Package | Bulk |
| Features | Backshell, Strain Relief |
| Shielding | Unshielded |
| Orientation | 0 |
| Termination | Solder Cup |
| Applications | Industrial, Medical, Testing Equipment & Measurement |
| Positions | 14 |
| Shell size - insert | 1 |
| Contact finish - mating | Gold |
Sourcing this connector
ODU S21M07-P14MCC0-527S is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against ODU and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
