XS2C-D4S1 - Omron Automation and Safety
MPNXS2C-D4S1
Active

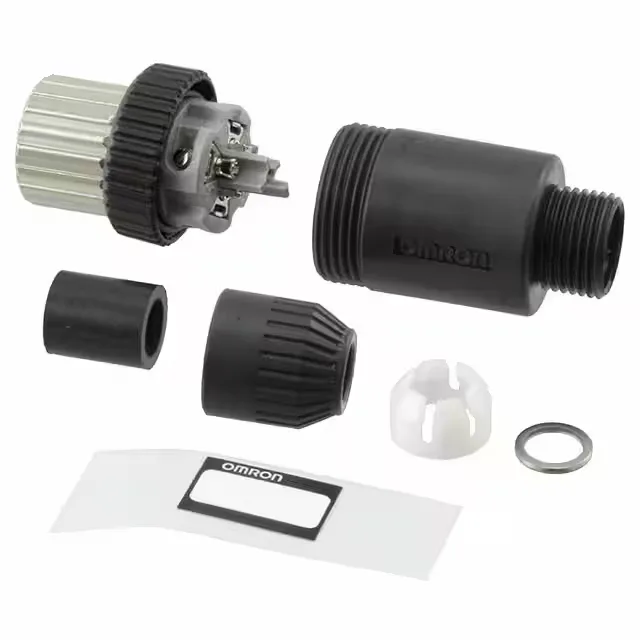

CONN RCPT FMALE 4POS GOLD SCREW
$20.74Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesXS2
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XS2 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 250VAC/DC |
| Current rating | 4A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.118\" ~ 0.236\" (3.00mm ~ 6.00mm) |
| Operating temperature | -25°C ~ 70°C |
| Color | Black, Silver |
| Shell material | Brass |
| Insert material | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Brass |
| Primary material | Metal |
| Backshell material, plating | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell, Coupling Nut |
| Shielding | Unshielded |
| Orientation | Keyed |
| Termination | Screw |
| Shell finish | Nickel |
| Positions | 4 |
| Shell size - insert | M12-4 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 16.0µin (0.41µm) |
