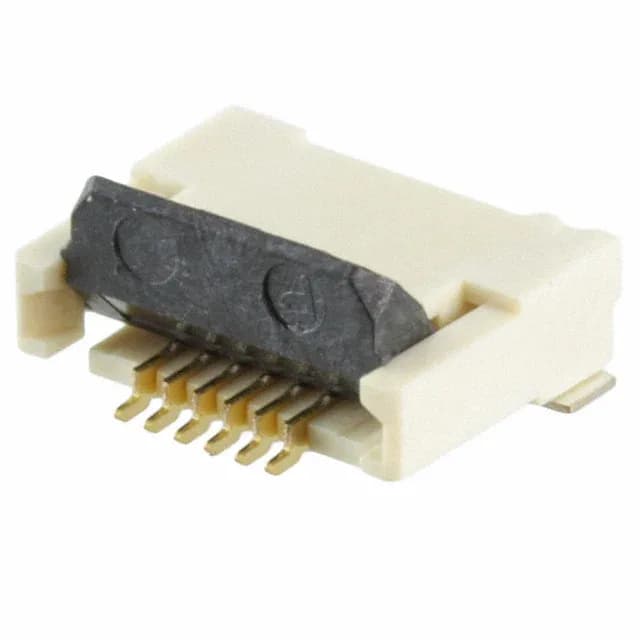

Omron Electronics Inc-EMC Div XF2M-0615-1A
MPNXF2M-0615-1A
Active
CONN FPC 6POS 0.5MM R/A
$1.1700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesXF2M
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XF2M |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Top and Bottom |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -30°C ~ 85°C |
| Housing color | Natural |
| Actuator color | Black |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP), Halogen Free |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Liquid Crystal Polymer (LCP), Halogen Free |
| Height above board | 0.083\" (2.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Rotary Lock, Backlock |
| FFC, FCB thickness | 0.30mm |
| Positions | 6 |
| Contact finish thickness | 5.90µin (0.150µm) |
