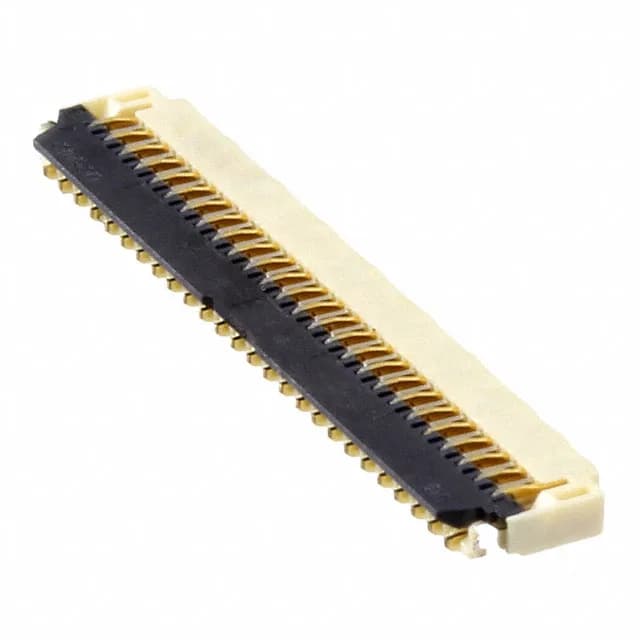

XF3H-5155-31AR - Omron Electronics Inc-EMC Div
MPNXF3H-5155-31AR
Obsolete
$2.1900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XF3H-AR |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.2A |
| Operating temperature | -30°C ~ 85°C |
| Housing color | Natural |
| Actuator color | Black |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP), Halogen Free |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Liquid Crystal Polymer (LCP), Halogen Free |
| Height above board | 0.037\" (0.95mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.012\" (0.30mm) |
| Package | Bulk |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Rotary Lock |
| FFC, FCB thickness | 0.20mm |
| Positions | 51 |
| Contact finish thickness | 5.90µin (0.150µm) |
