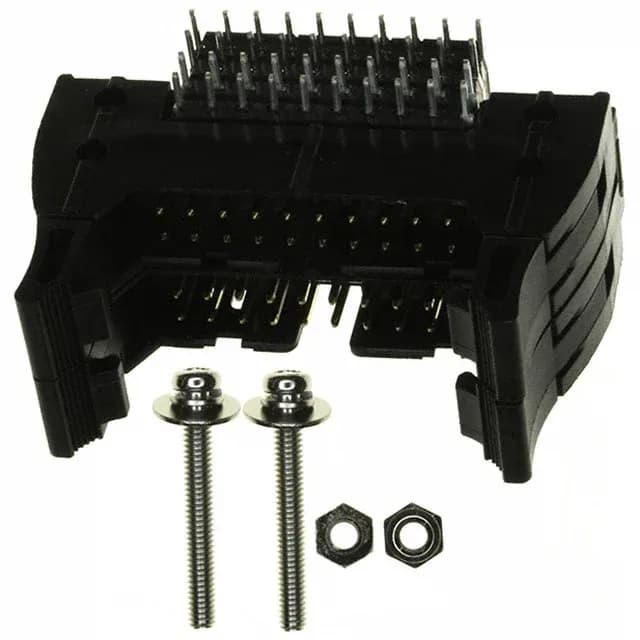

Omron Electronics Inc-EMC Div XG4A-2039-A
MPNXG4A-2039-A
Active
CONN HEADER R/A 20POS 2.54MM
$10.0400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesXG4
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XG4 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Stackable (2) |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 300V |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Brass, Nickel |
| Insulation color | Black |
| Insulation height | 0.669\" (17.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot, Mounting Flange, Mounting Hardware |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20, 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 5.90µin (0.150µm) |
