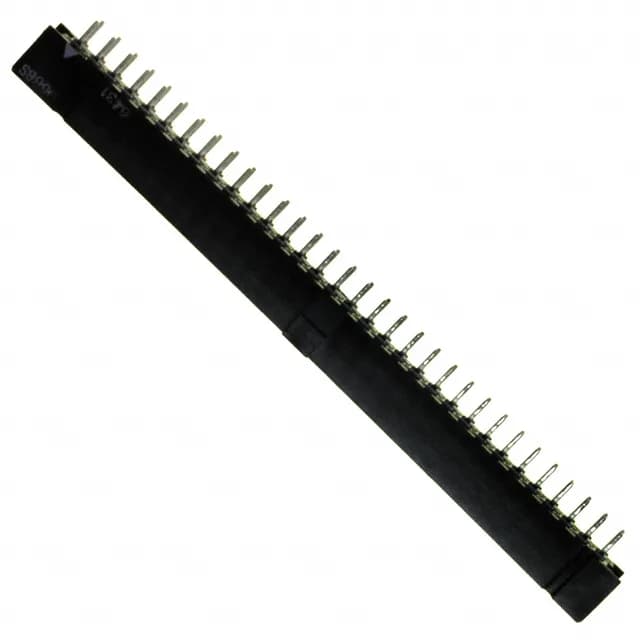

Omron Electronics Inc-EMC Div XG4H-6431
MPNXG4H-6431
Active
CONN RCPT 64POS 0.1 GOLD PCB
$9.2300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesXG4
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XG4 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Voltage rating | 300VAC |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.283\" (7.19mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 9.7mm, 10.1mm |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Features | Polarizing Key |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 64 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 5.90µin (0.150µm) |
