XG8W-5034 - Omron Electronics Inc-EMC Div
MPNXG8W-5034
Active

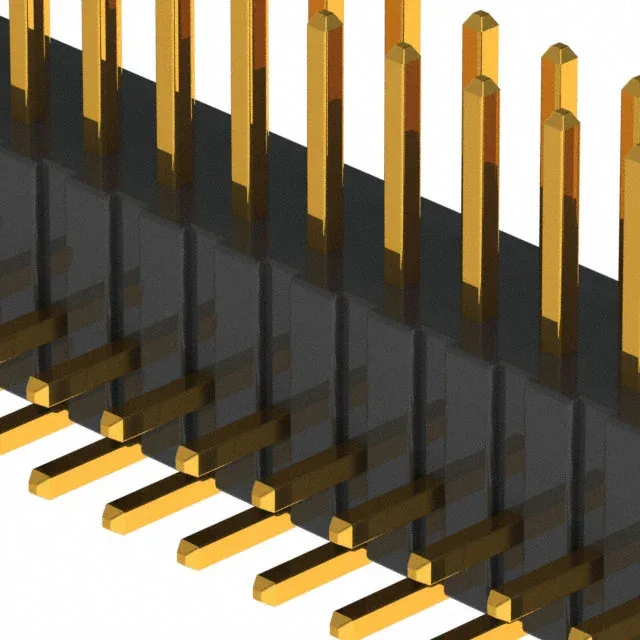

CONN HEADER R/A 50POS 2.54MM
$5.3100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesXG8
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XG8 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 300V |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Brass, Nickel |
| Insulation color | Black |
| Insulation height | 0.236\" (6.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 5.90µin (0.150µm) |
| Contact finish thickness - mating | 5.90µin (0.150µm) |
