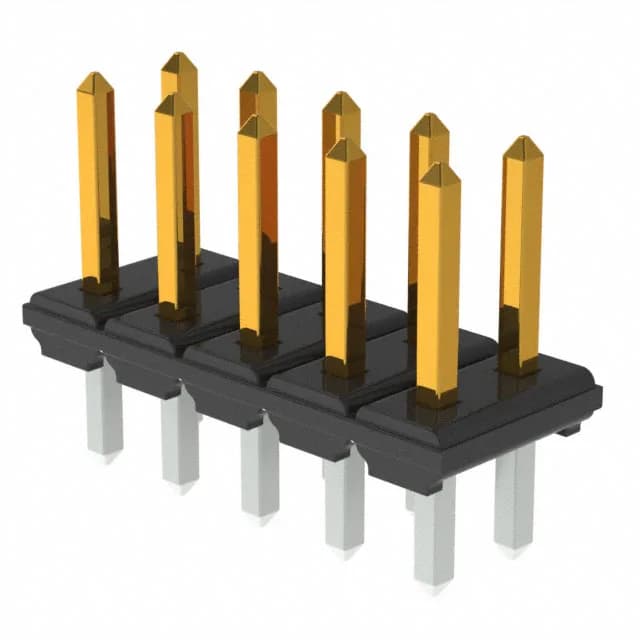

Omron Electronics Inc-EMC Div XJ8C-1011
MPNXJ8C-1011
Active
CONN HEADER VERT 10POS 2.54MM
$2.1800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesXJ8
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XJ8 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 300V |
| Current rating | 2A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Brass, Nickel |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Polyphenylene Sulfide (PPS), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.339\" (8.60mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.169\" (4.30mm) |
| Contact finish thickness - mating | 5.90µin (0.150µm) |
