XM3C-0922-112 - Omron Electronics Inc-EMC Div
MPNXM3C-0922-112
Active

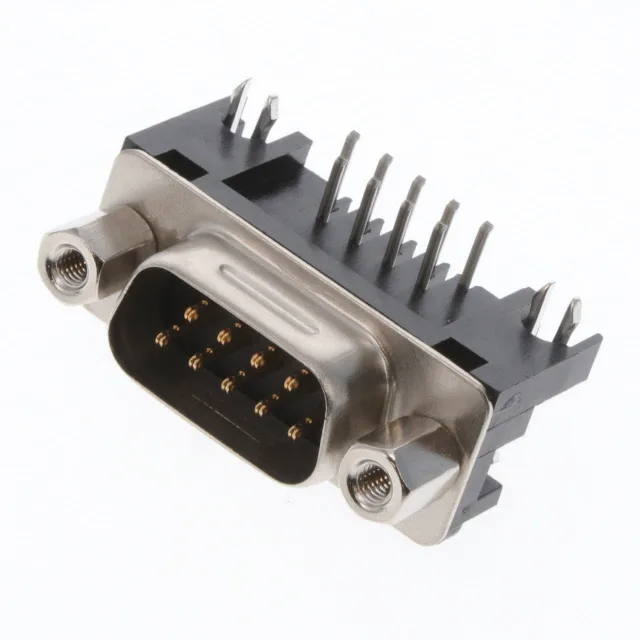

CONN D-SUB PLUG 9POS R/A SLDR
$11.45Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesXM3C
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | XM3C |
| Type | Signal |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Voltage rating | 300V |
| Current rating | 5A |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock, Shielded |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Mating Side, Female Screwlock (M2.6) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | 16.0µin (0.41µm) |
