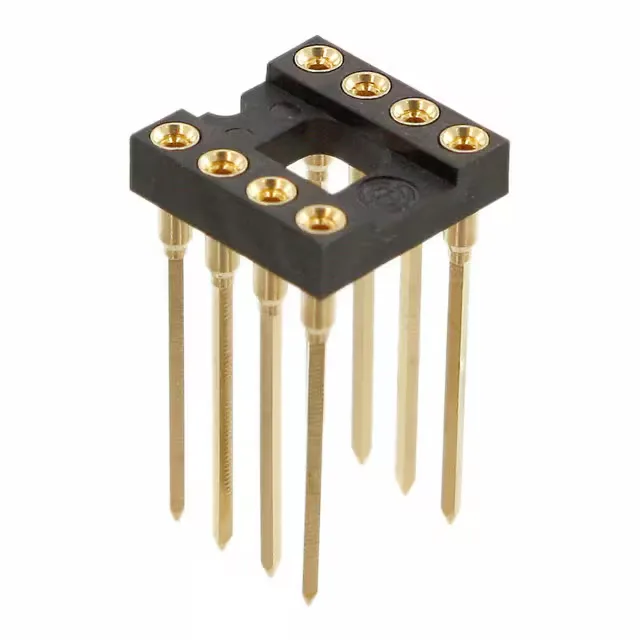

XR2A-0802 - Omron Electronics Inc-EMC Div
MPNXR2A-0802
Active
CONN IC DIP SOCKET 8POS GOLD
$3.6Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesXR2
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | XR2 |
| Mounting | Through Hole |
| Current rating | 1 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact material - post | Beryllium Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Open Frame |
| Termination | Wire Wrap |
All specifications
| Parameter | Value |
|---|---|
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 20mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.510\" (12.95mm) |
| Contact finish thickness - post | 29.5µin (0.75µm) |
| Contact finish thickness - mating | 29.5µin (0.75µm) |
| Number of positions or pins | 8 (2 x 4) |
