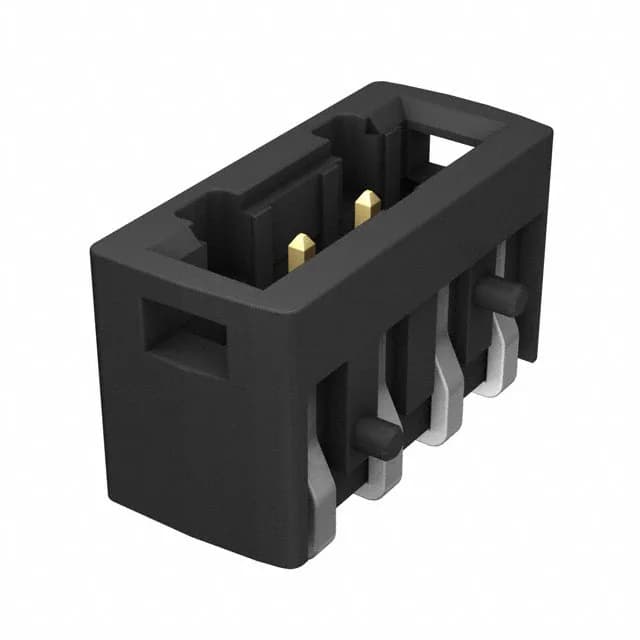

XW4K-02A1-V1 - Omron Electronics Inc-EMC Div
MPNXW4K-02A1-V1
Active
TERM BLOCK HDR 2POS VERT 2.54MM
$1.8000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesXW4
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | XW4 |
| Mounting | Surface Mount |
| Voltage - UL | 160 V |
| Current - UL | 6 A |
| Wire strip length | 6mm |
| Wire gauge or range - AWG | 20-26 AWG |
| Wire gauge or range - mm2 | 0.14-0.5mm² |
| Operating temperature | -45°C ~ 125°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.293\" (7.44mm) |
| Pitch | 0.100\" (2.54mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide, Latches |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
