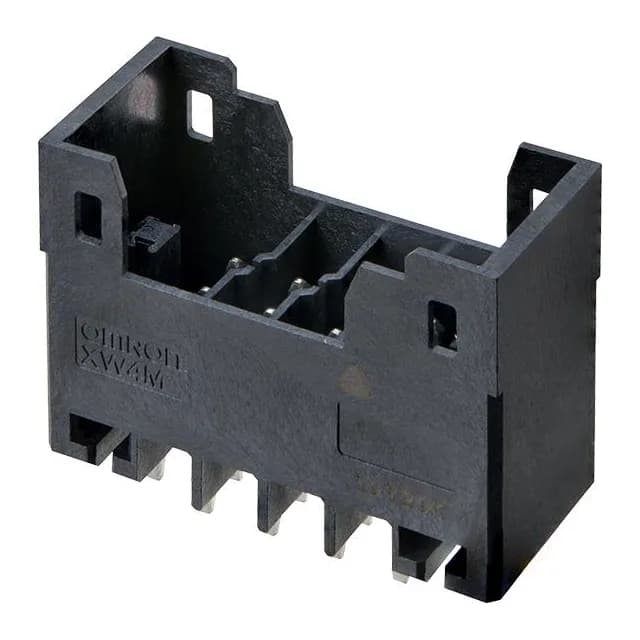

XW4M-04D2-V1DA - Omron Electronics Inc-EMC Div
MPNXW4M-04D2-V1DA
Active
PLUG,DOUBLE-ROW,STRAIGHT,GOLD,TH
$9.0900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesXW4M
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | XW4M |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 160 V |
| Current - UL | 8 A |
| Current - IEC | 8A |
| Operating temperature | -40°C ~ 100°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Liquid Crystal Polymer (LCP) |
| Insulation height | 0.728\" (18.50mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Tray |
| Features | Latches |
| Number of levels | 2 |
| Termination style | Solder |
| Header orientation | Vertical |
| Positions | 4 |
| Positions per level | 2 |
| Contact mating finish | Gold |
