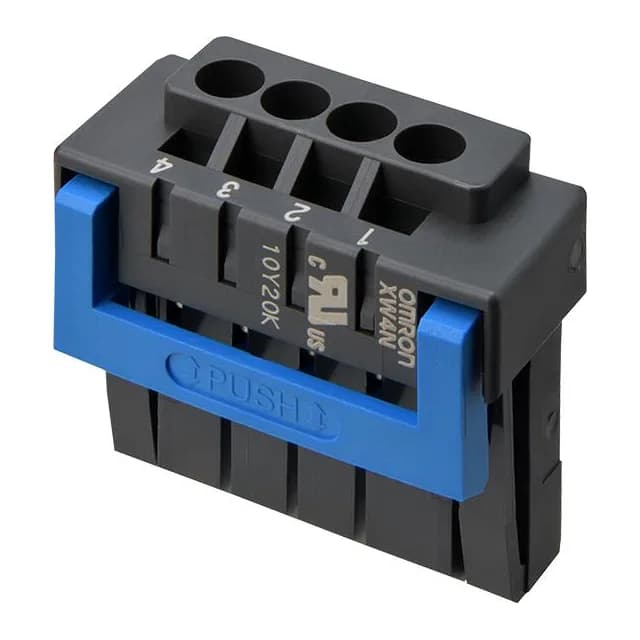

Omron Electronics Inc-EMC Div XW4N-02D1-S
MPNXW4N-02D1-S
Active
SOCKET,SINGLE-ROW,,TIN REFLOW,
$8.3100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesXW4N
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | XW4N |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 160 V |
| Current - UL | 8 A |
| Current - IEC | 8A |
| Plug wire entry | 180° |
| Wire strip length | 9.5mm |
| Wire gauge or range - AWG | 16-24 AWG |
| Wire gauge or range - mm2 | 0.2-1.5mm² |
| Operating temperature | -40°C ~ 100°C |
All specifications
| Parameter | Value |
|---|---|
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.423\" (10.75mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Tray |
| Features | Lever Actuated |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
